Heos Pro
Obecné charakteristiky
Heos Pro represents the highly-efficient solution for plug-in and semi plug-in showcases, guaranteeing a considerable reduction in environmental impact, cutting direct emissions through the use of natural refrigerants, and indirect emissions through continuous modulation. This approach is the result of the synergy between the variable-speed DC compressor and electronic expansion valve, managed by an advanced controller.
The main components of the complete Heos package are:- BLDC compressors with DC technology ensure higher efficiency through permanent magnet brushless motors, the widest possible range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions.
- DC drivers. CAREL drivers for Heos applications feature high electrical efficiency and reliability of both the driver and the entire solution. Class B firmware is available, with integrated protection and consequent savings in installation costs.
- Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor.

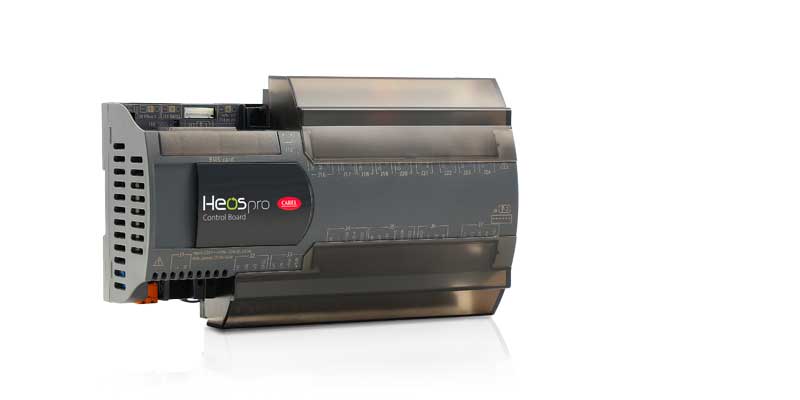

- Heos controller. All-in-one solution for:
- showcase temperature and superheat control
- compressor management (envelope, EER/COP calculation, oil recovery procedures)
- condensing stage control
- lights, defrosts, fans and alarms
- Ethernet and Bluetooth connectivity
- A3 ready for flammable refrigerants
The Heos solution is available for natural (R290 and CO2) or synthetic refrigerants.-
Plus
Advanced Connectivity
HMI connection via Bluetooth or NFC allows the parameters to be set and commissioning completed directly from the CAREL “Applica” app, while in addition to the standard RS485 Modbus connection, the individual controllers can also be connected to an Ethernet network (Modbus TCP/IP), so as to maximise connection speed. In this way, supervisor polling times, as well as any upgrades to the individual controllers, are significantly faster.
A3 ready
In addition to normal HFCs and CO2, all system components are compatible for use with A3 flammable refrigerants, such as propane (R290), or A2L fluids.
Continuous system modulation
Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.
Energy efficiency
The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.
Maximum food preservation quality
Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.
Dokumentace
Technická
-
Manuály
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +0300147EN Popis Heos Pro - Highly effi cient solution for showcases - USER MANUAL Jazyk ENG Datum 16/02/2024 Verze 1.1 Kód +0300147IT Popis Heos Pro - Soluzione ad alta efficienza per Showcase - MANUALE D’USO Jazyk ITA Datum 16/02/2024 Verze 1.1 -
Technické listy
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +050004082 Popis HEOSpro - Controllo programmabile integrato - Integrated programmable controller Jazyk ENG ITA Datum 24/09/2024 Verze 1.2
Obchodní
-
Brožury
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000243EN Popis Heos Pro sistema - Efficiency, safety and connectivity for your plug-in and semi plug-in showcases Jazyk ENG Datum 25/03/2024 Verze 1.0 Kód +3000243IT Popis Heos Pro sistema - Efficienza, sicurezza e connettività per i tuoi banchi refrigerati plug-in e semi plug-in Jazyk ITA Datum 25/03/2024 Verze 1.0
Images
-
High resolution images
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód PH22LUP30A-heospro Popis CAREL Heos Pro - Plug-in and semi plug-in - Food Retail Jazyk ALL Datum 30/07/2024 Verze R.0
